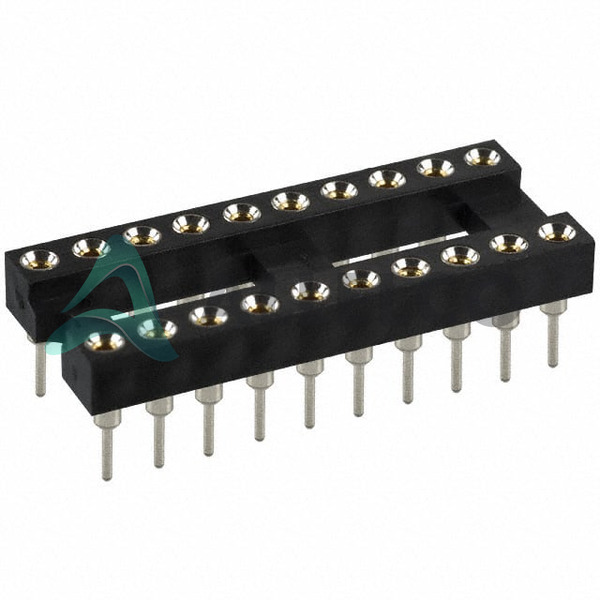

AR20-HZL/01-TT-R - Assmann WSW Components

Manifakti Nimewo Pati: AR20-HZL/01-TT-R

Manifakti: ASSMANN WSW Components

Allelco Nimewo Pati: 98D-AR20-HZL/01-TT-R

Garanti: 1 ane Allelco garanti - Chèche konnen plis

Pati Deskripsyon: CONN IC DIP SOCKET 20POS GOLD

Pake: Tube

Done fèy: 1.AR20-HZL/01-TT-.pdf ...

Fich
ARxx-HxL-TT,xx-R.pdf

~~Konpare~~

Sètifikasyon nou an

Nan stok: 38621

EKSPRIME OPSYON

Metòd Peman

Sètifikasyon nou an

Espesifikasyon

Espesifikasyon AR20-HZL/01-TT-R Tech
Assmann WSW Components - AR20-HZL/01-TT-R espesifikasyon teknik, atribi, paramèt ak pati ki gen espesifikasyon menm jan ak Assmann WSW Components - AR20-HZL/01-TT-R

Pwodwi atribi	Valè atribi
Manifakti	ASSMANN WSW Components
Kalite	DIP, 0.3" (7.62mm) Row Spacing
Sispansyon Post Longè	-
Tèminasyon	Solder
Seri	-
Pitch - Post	0.100" (2.54mm)
Pitch - matirite	0.100" (2.54mm)
Pakèt	Tube
Operating Tanperati	-40°C ~ 105°C
Kantite Pozisyon oswa PIN (Grid)	20 (2 x 10)
Mounting Kalite	Through Hole
Materyèl Flammability Rating	UL94 V-0

Pwodwi atribi	Valè atribi
Materyèl Lojman	Thermoplastic, Polyester
Karakteristik yo	Open Frame
Rating aktyèl (AMPs)	3 A
Kontakte rezistans	4mOhm
Materyèl kontak - Post	Beryllium Copper
Materyèl kontak - Manman	Beryllium Copper
Kontakte Fini epesè - Post	200.0µin (5.08µm)
Kontakte Fini epeseur - Manman	10.0µin (0.25µm)
Kontakte Fini - Post	Tin
Kontakte Fini - Mating	Gold
Nimewo pwodwi baz	AR20-HZ

Anviwònman & ekspòtasyon klasifikasyon

ATRIBI	DESKRIPSYON
Nivo sansiblite imidite (MSL)	1 (Unlimited)
Rive nan estati	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040

Pati ki gen espesifikasyon menm jan an

Twa pati ki sou bò dwat la gen menm espesifikasyon pou Assmann WSW Components AR20-HZL/01-TT-R.

Pwodwi atribi
Nimewo Pati	AR20-HZL/07-TT-R	AR20-HZL/01-TT	AR20-HZL/07-TT	AR20-HZL-TT
Manifakti	ASSMANN WSW Components	Assmann WSW Components	Assmann WSW Components	Assmann WSW Components
Mounting Kalite	-	Surface Mount	Through Hole	Surface Mount
Pitch - Post	-	-	-	-
Operating Tanperati	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Kalite	-	-	-	-
Materyèl Flammability Rating	-	-	-	-
Kontakte Fini - Post	-	-	-	-
Kantite Pozisyon oswa PIN (Grid)	-	-	-	-
Kontakte Fini epesè - Post	-	-	-	-
Pitch - matirite	-	-	-	-
Rating aktyèl (AMPs)	-	-	-	-
Kontakte Fini epeseur - Manman	-	-	-	-
Materyèl kontak - Post	-	-	-	-
Tèminasyon	-	-	-	-
Sispansyon Post Longè	-	-	-	-
Seri	-	-	-	-
Nimewo pwodwi baz	-	DAC34H84	MAX500	ADS62P42
Kontakte Fini - Mating	-	-	-	-
Karakteristik yo	-	-	-	Simultaneous Sampling
Pakèt	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Materyèl Lojman	-	-	-	-
Kontakte rezistans	-	-	-	-
Materyèl kontak - Manman	-	-	-	-

AR20-HZL/01-TT-R fich PDF

Download AR20-HZL/01-TT-R PDF fich ak dokiman Assmann WSW Components pou AR20-HZL/01-TT-R - Assmann WSW Components.

Fich: ARxx-HxL-TT,xx-R.pdf
