KayPwodwi yoKonektè, entèkonèkteRektangilè konektè - Tèt, Pins MalePEC10DBDN

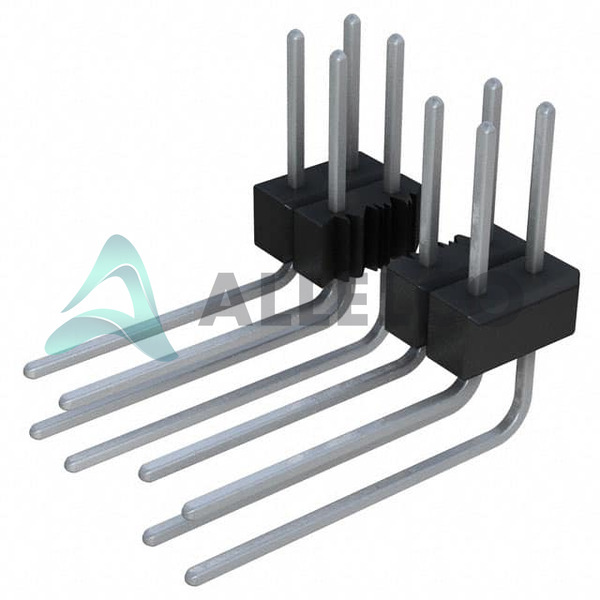

PEC10DBDN Image
PEC10DBDN Image - 1
Imaj ka reprezantasyon.
wè espesifikasyon pou detay pwodwi.
Pataje
 Favori
EKSPRIME OPSYON
Metòd Peman

PEC10DBDN - Sullins Connector Solutions

Manifakti Nimewo Pati
PEC10DBDN
Manifakti
Sullins Connector Solutions
Allelco Nimewo Pati
98D-PEC10DBDN
Garanti
1 ane Allelco garanti - Chèche konnen plis
Pati Deskripsyon
CONN HEADER R/A 20POS 2.54MM
Pake
Bulk
Done fèy
1.PEC10DBDN.pdf ...

Enfòmasyon sou anviwònman an

Sullins Connector Solutions REACH.pdf
RoHs Status
ROHS3 konfòme
Konpare
Sètifikasyon nou an
Nan stok: 35373
  • Pri Inite: $1.584
  • Sou-total: $0.00

Vle yon pi bon pri?
Ajoute nan CART ak soumèt RFQ Koulye a, nou pral kontakte ou imedyatman.

Kantite Pri Inite Ext.Pri
1+ $1.584 $1.58
Pri ki anwo yo pa gen ladan taks ak pousantaj machandiz, ki pral kalkile sou paj yo lòd.
EKSPRIME OPSYON
Metòd Peman
Sètifikasyon nou an

Espesifikasyon

Espesifikasyon PEC10DBDN Tech
Sullins Connector Solutions - PEC10DBDN espesifikasyon teknik, atribi, paramèt ak pati ki gen espesifikasyon menm jan ak Sullins Connector Solutions - PEC10DBDN

Pwodwi atribi Valè atribi
Manifakti Sullins Connector Solutions
Rating Voltage -
Tèminasyon Solder
Style Board to Board or Cable
Anvlòp Unshrouded
Seri -
Espès Ranje - Manman 0.100" (2.54mm)
Pitch - matirite 0.100" (2.54mm)
Pakèt Bulk
An jeneral Kontakte longè -
Operating Tanperati -65°C ~ 125°C
Nimewo nan ranje 2
Kantite pozisyon chaje All
Kantite Pozisyon 20
Mounting Kalite Through Hole, Right Angle
Materyèl Flammability Rating UL94 V-0
Ki gen rapò Heights Stacking Heights -
Materyèl izolasyon Polybutylene Terephthalate (PBT)
Pwodwi atribi Valè atribi
Wotè izolasyon 0.240" (6.10mm)
Koulè izolasyon Black
Pwoteksyon Ingress -
Karakteristik yo -
Fikse Kalite Push-Pull
Rating aktyèl (AMPs) 3A
Kalite kontak Male Pin
Kontakte fòm Square
Materyèl kontak Phosphor Bronze
Kontak Length - Post 0.400" (10.16mm)
Kontak Length - Manman 0.230" (5.84mm)
Kontakte Fini epesè - Post 100.0µin (2.54µm)
Kontakte Fini epeseur - Manman 100.0µin (2.54µm)
Kontakte Fini - Post Tin
Kontakte Fini - Mating Tin
Kalite Connector Header, Breakaway
Nimewo pwodwi baz PEC10
Aplikasyon -

Anviwònman & ekspòtasyon klasifikasyon

ATRIBI DESKRIPSYON
RoHs Status ROHS3 konfòme
Nivo sansiblite imidite (MSL) Not Applicable
Rive nan estati REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Pati ki gen espesifikasyon menm jan an

Twa pati ki sou bò dwat la gen menm espesifikasyon pou Sullins Connector Solutions PEC10DBDN.

Pwodwi atribi PEC10DBBN PEC10DBCN PEC10DFDN PEC10DFBN
Nimewo Pati PEC10DBBN PEC10DBCN PEC10DFDN PEC10DFBN
Manifakti Sullins Connector Solutions Sullins Connector Solutions Sullins Connector Solutions Sullins Connector Solutions
Karakteristik yo - - - Simultaneous Sampling
Kontakte Fini epesè - Post - - - -
Kontakte Fini - Post - - - -
Tèminasyon - - - -
Fikse Kalite - - - -
Espès Ranje - Manman - - - -
Rating Voltage - - - -
Wotè izolasyon - - - -
Aplikasyon - - - -
Materyèl kontak - - - -
Operating Tanperati - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Kantite Pozisyon - - - -
Nimewo pwodwi baz - DAC34H84 MAX500 ADS62P42
Mounting Kalite - Surface Mount Through Hole Surface Mount
Ki gen rapò Heights Stacking Heights - - - -
Pwoteksyon Ingress - - - -
Kontakte Fini epeseur - Manman - - - -
Kalite Connector - - - -
Nimewo nan ranje - - - -
Pakèt - Tape & Reel (TR) Tube Tape & Reel (TR)
Kontak Length - Post - - - -
Seri - - - -
Kontakte fòm - - - -
Pitch - matirite - - - -
Anvlòp - - - -
Style - - - -
Kantite pozisyon chaje - - - -
Kalite kontak - - - -
Kontak Length - Manman - - - -
Materyèl Flammability Rating - - - -
Kontakte Fini - Mating - - - -
Rating aktyèl (AMPs) - - - -
Materyèl izolasyon - - - -
Koulè izolasyon - - - -
An jeneral Kontakte longè - - - -

PEC10DBDN fich PDF

Download PEC10DBDN PDF fich ak dokiman Sullins Connector Solutions pou PEC10DBDN - Sullins Connector Solutions.
